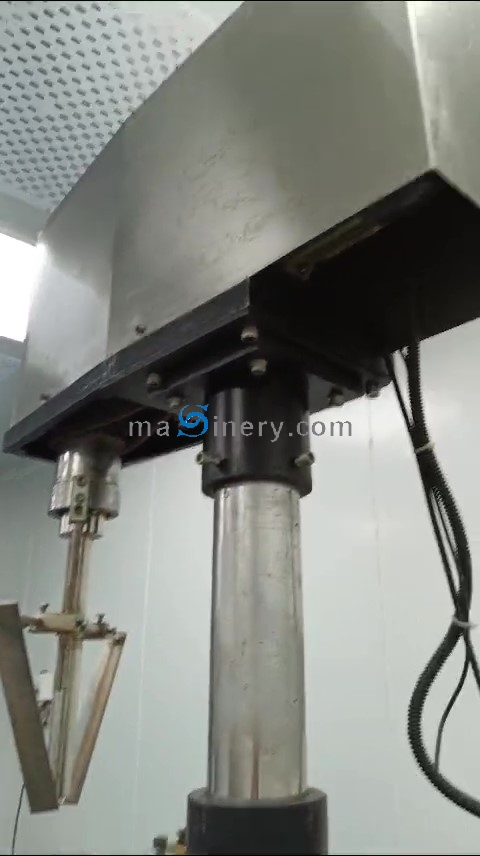

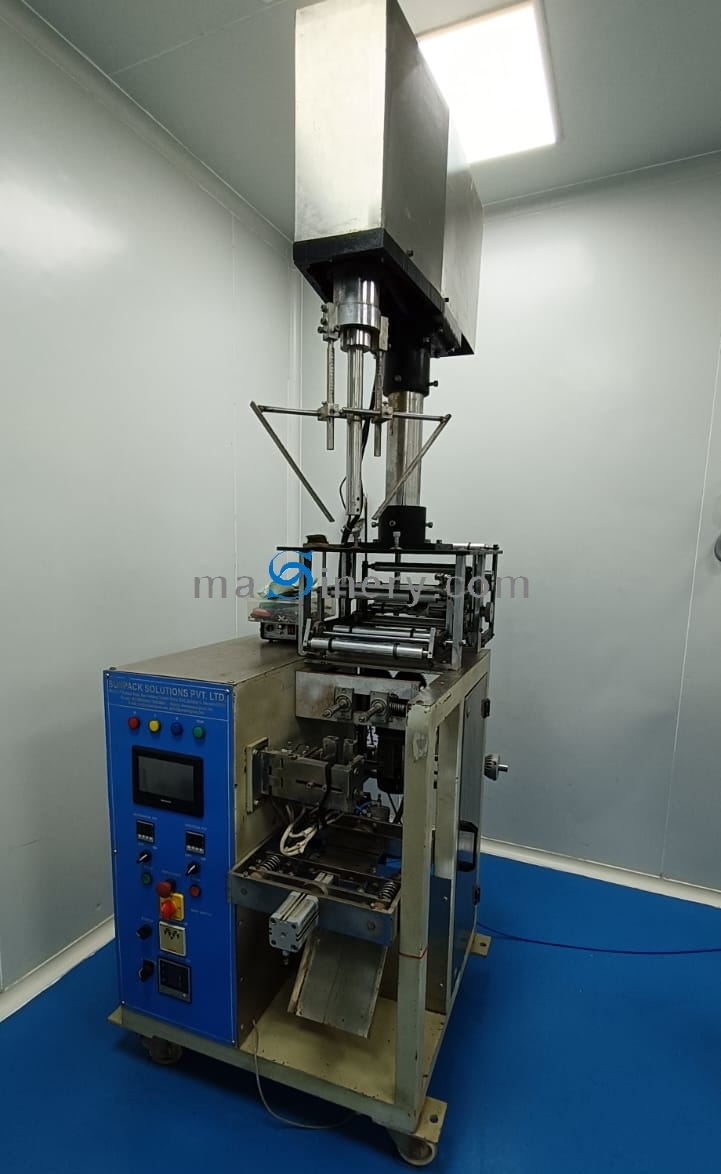

Servo Based Auger Filler Automatic Pouch Packing Machine

Fully Automatic Auger Filler Pouch Packing Machine

Year 2022

Make Sunpack Solutions Pvt Ltd , Faridabad

Model – SPS 104.

Servo Based Mini Collar Type

Filling Range 15 g to 100 g (Protein Powder)

Machine Covering SS 304.

Filling Speeds (Depending upon the physical and flow

characteristics of the product)

15g @ 80-90 packs/min

100g @ 70-80 packs/min

Accuracies +/- 1%

Bagger Machine (Model No.: - SPS-103).

Delta PLC Controller (Japanese).

Delta HMI (Touch Screen Panel)(Japanese)

Connected Power Load 5 kw

Features

Pneumatic engage/dis-engage system with adjustable pressure for belt draw-off

system.

Pneumatically operated vertical sealing system best suitable for heat sealable

laminates with stroke adjustment facilities.

Auto-Print Mark Sensor Unit

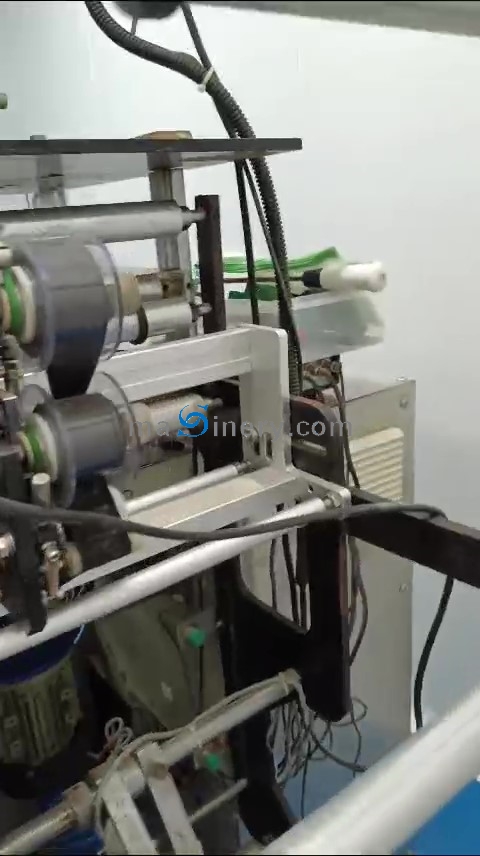

Web Aligning Assembly.

Web Unwind Assembly.

Bag Draw down Mechanism

Perforation or Batch Assembly.

Pneumatically activated knife for cutting the streamer at desired count.

The count is controlled digitally by PLC.

Set of Front & Rear Sealing Jaws complete with pneumatically activated knife,

heaters and thermocouple. Standard design is V-groove in 2mm pitch.

The integrated tool is capable of achieving Bottom Seal and the Top Seal of the

next bag in a single cycle.

Longitudinal Sealing Jaw for laminates.

Tool suitable for vertical seal. Jaw width 15mm.

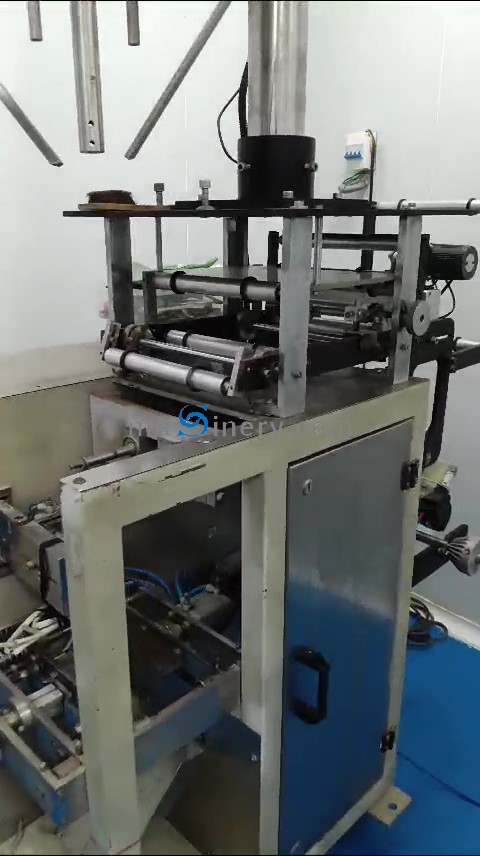

Pouch/Bag Forming Assembly.

Every Individual Paper Setting will contain: Individual Top and Bottom Plate.

Former Pipe and Pouch Former/Collar.
