Specifications

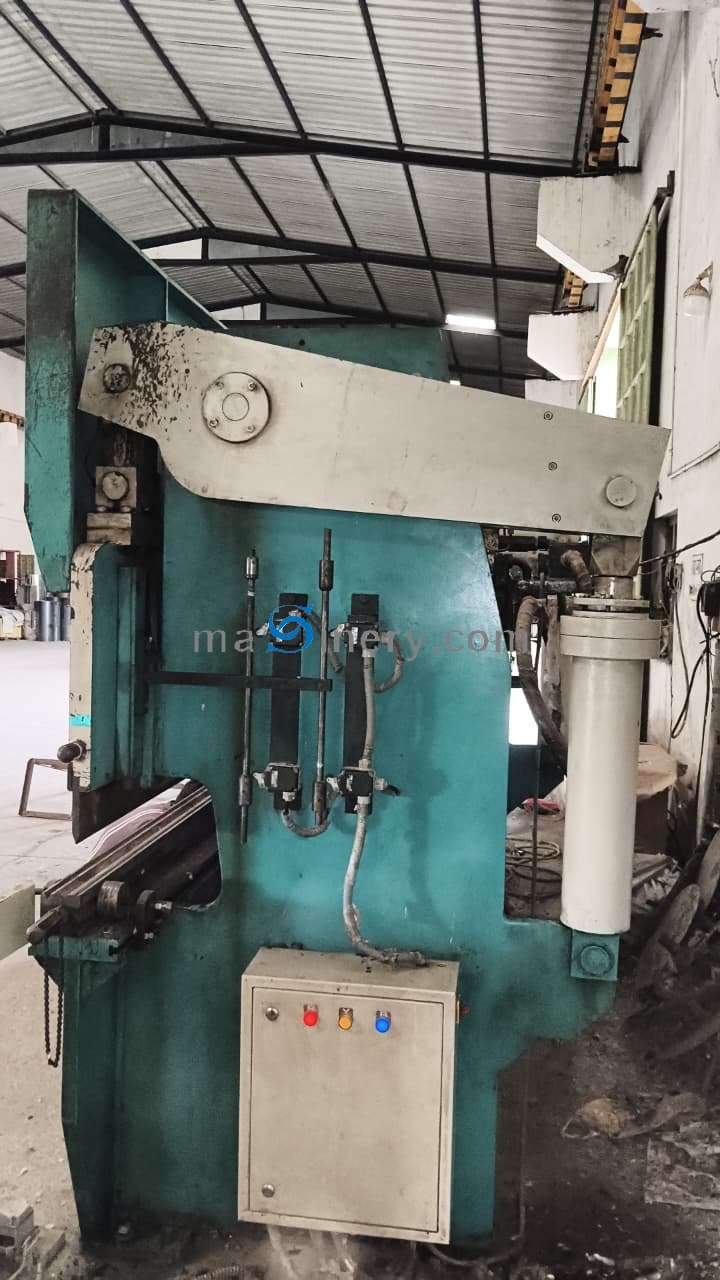

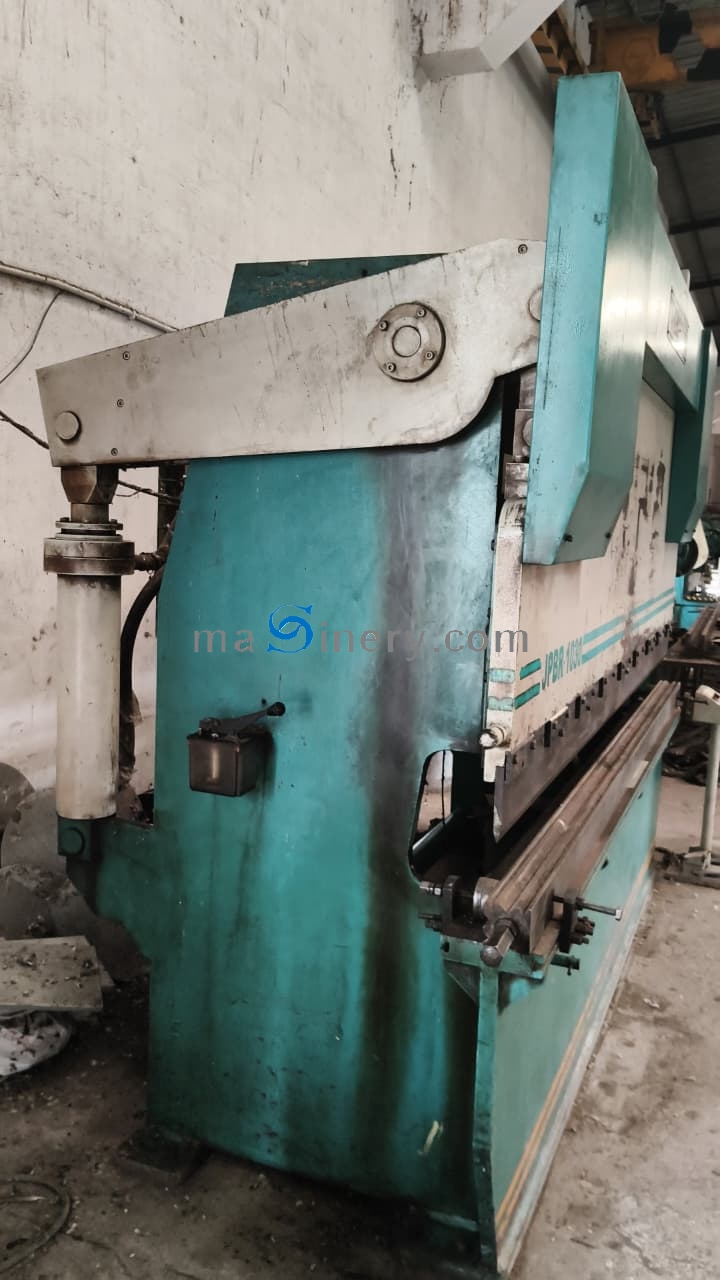

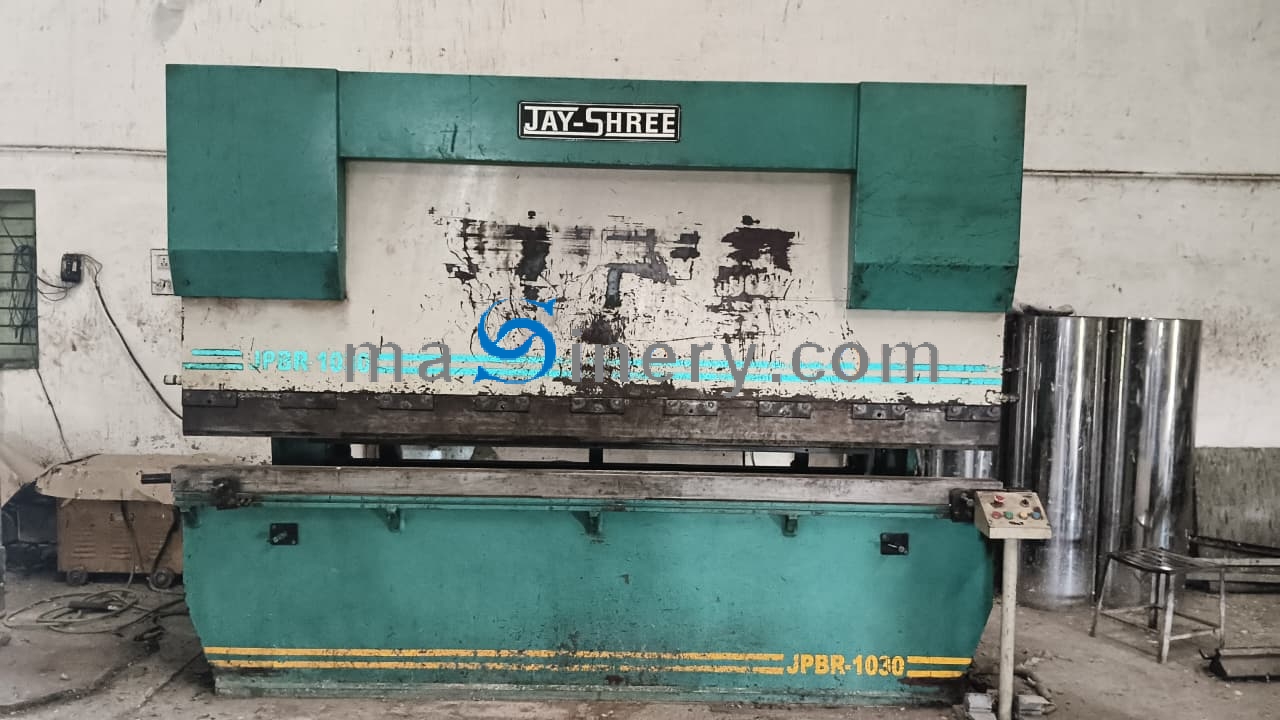

 • Model: JPBR-1030 (Rear Cylinder Hydraulic Press Brake)

• Tonnage: 100 Ton

• Bending Capacity: 3125 mm x 4 mm (Mild Steel sheet width x thickness)

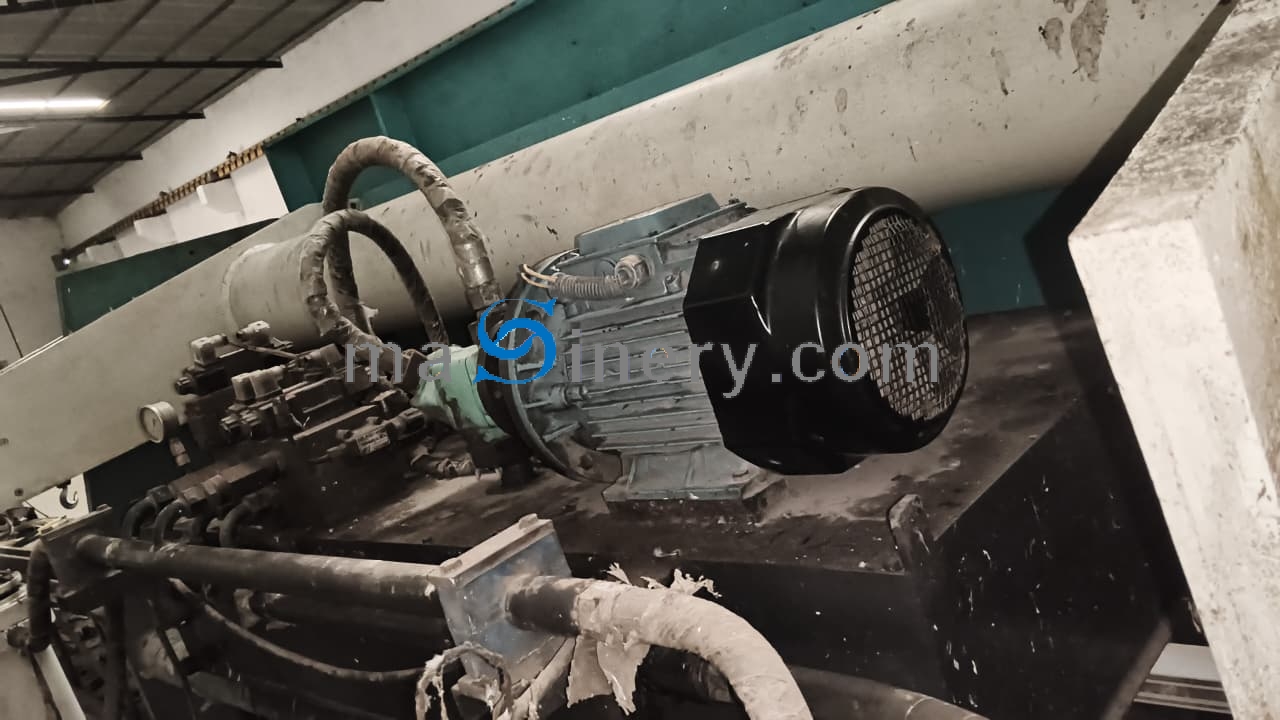

• Motor: 10 HP

• Ram Stroke: 150 mm

• Open Height: 330 mm

• Depth (Throat): 250 mm

• Table Width: 200 mm

• Speed: Approach: 40 mm/sec, Pressing: 5 mm/sec, Return: 40 mm/sec

• Working Pressure: Up to 160 bar (designed hydraulic parts are tested at 310 bar for safety and longevity)

• Construction: Heavy welded steel structure, manual back gauge, multi-vee die block, front sheet supports, accurate bending repeatability

• Controls: Foot switch for up/down, mode selector (manual, inching, automatic cycles), emergency stop, accessible control panel

 • Features: Replaceable liners, high-quality hydraulic seals, instant stoppage and reversal, low noise, main controls on a movable station
