Complete Crumb Rubber Manufacturing Plant For Sale

    Year August 2020

    Make HVST Group China

    Best for Radial Truck and Bus Tyres

    Production Capacity

    700-800 kg/hr combined for 2-4 mm, 0.8-2mm & 30 mesh (3 size).

    500 kg/hr combined for 0.8-2 mm & 30 mesh(2 size).

    350 kg/hr for only 30 mesh.

    Specifications of the machines available

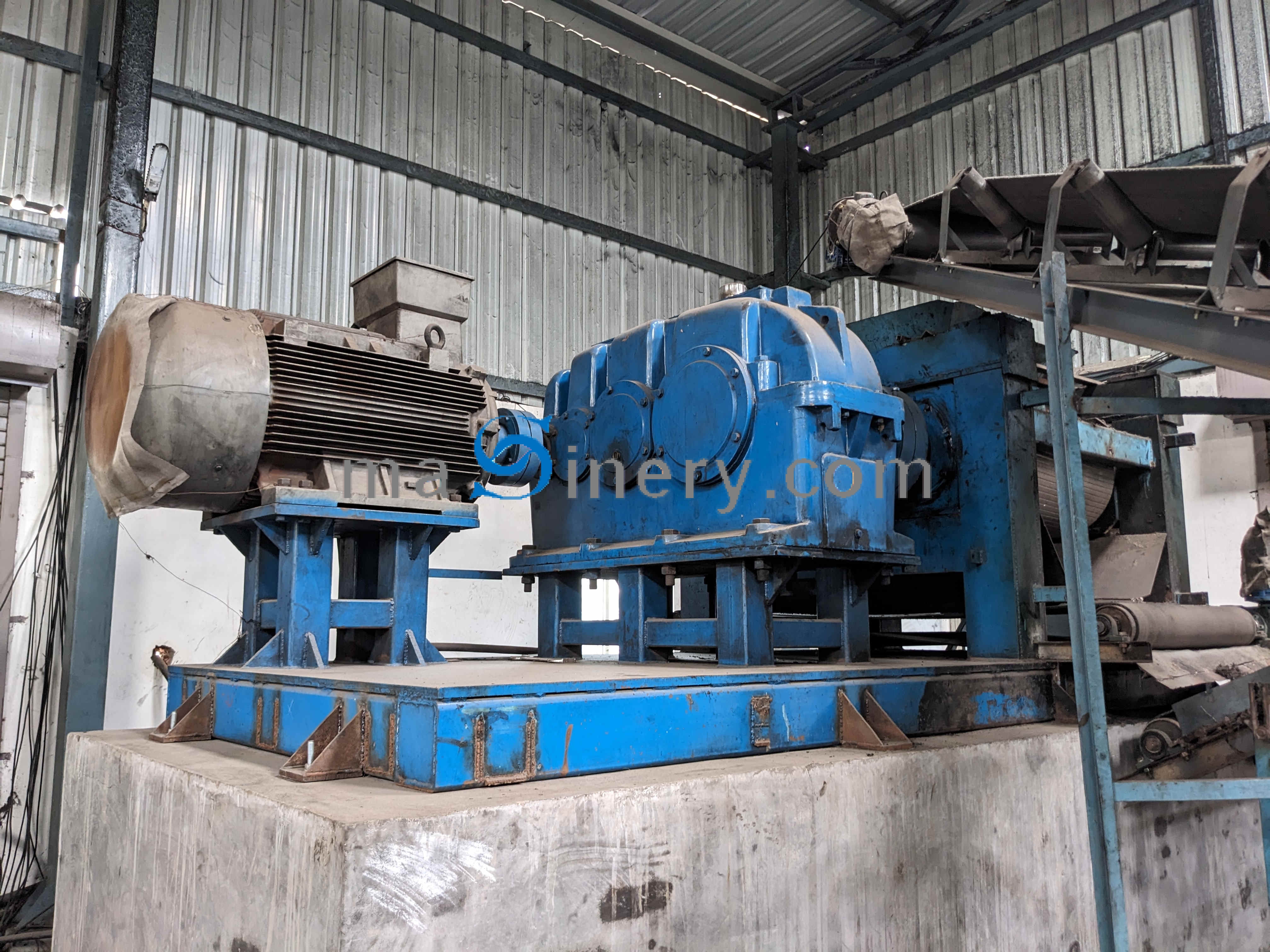

    1) Cracker XKP 560D

    Motor: 132 kw (177 HP), 970 RPM.

    Roll dia: 560 mm, Roll width: 1000 mm, both roll grooved.

    Age: 3 yrs, Usage: 500 ton

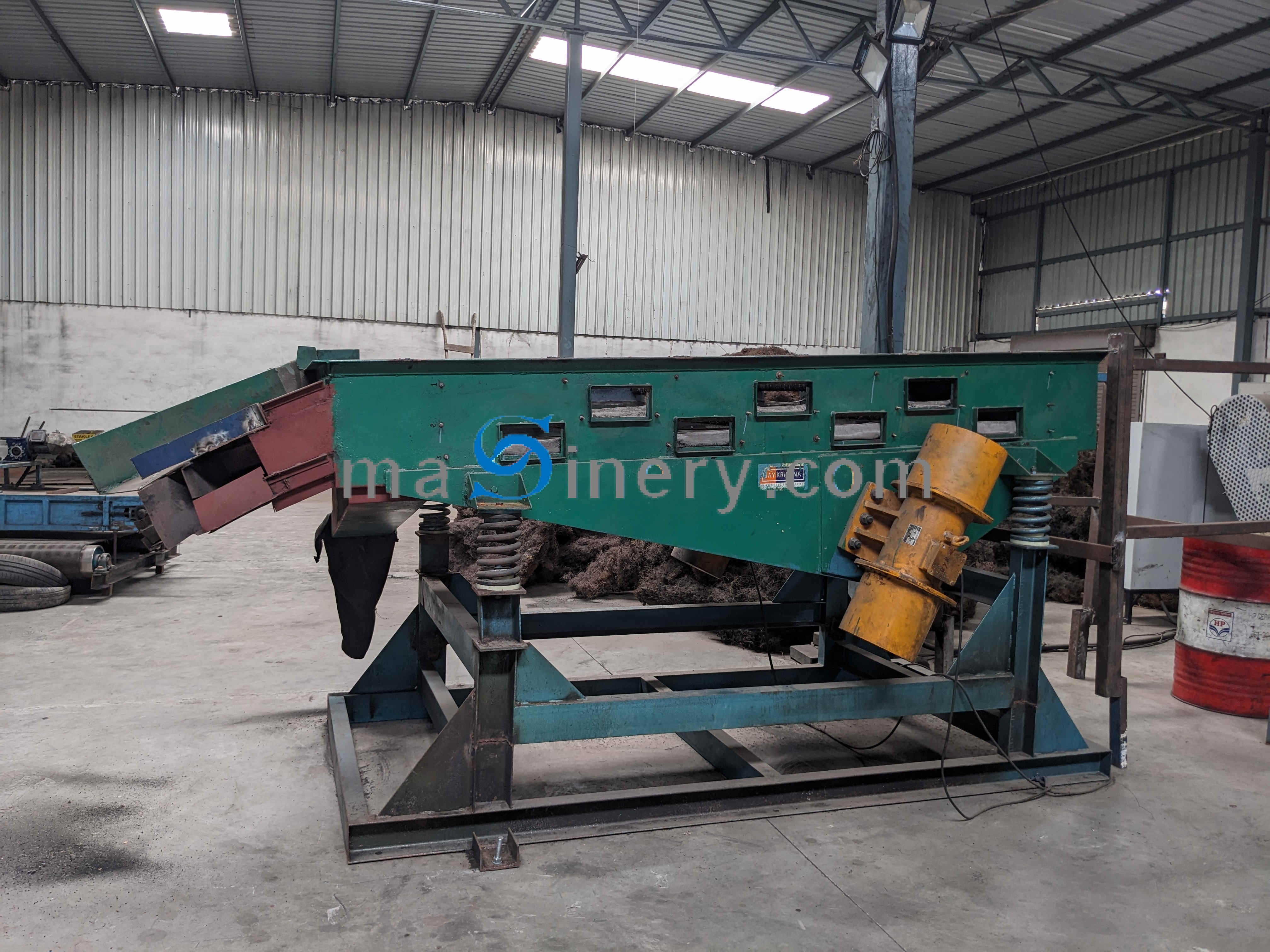

    2) Primary Vibrating Screener: 15ft x 5 ft single screen, 7.5 HP motor 960 RPM.

    3) Second Vibrating Screener: 8.5ft x 3.75ft 3 screens (extra screens available), 2 x 5 HP motors.

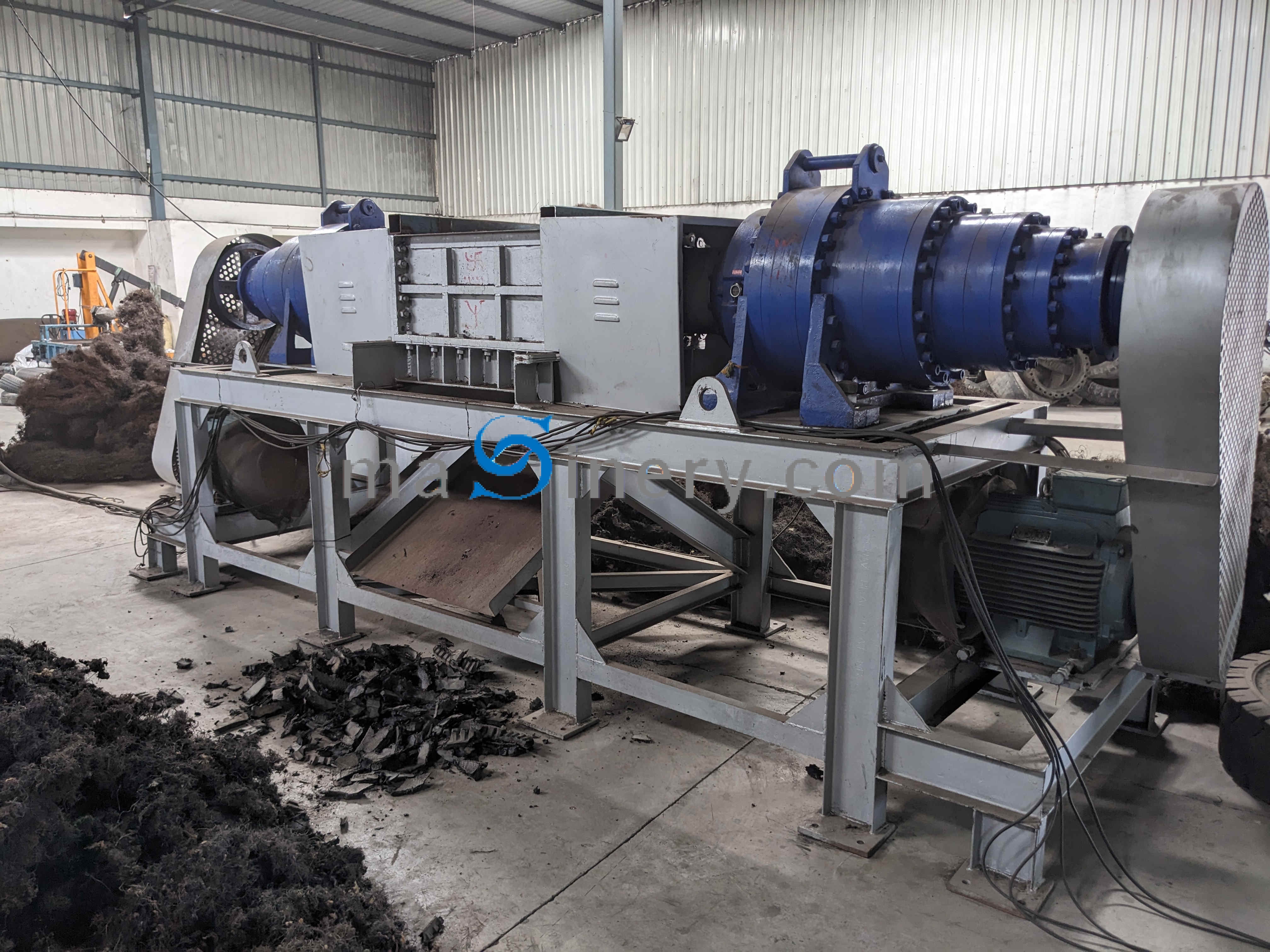

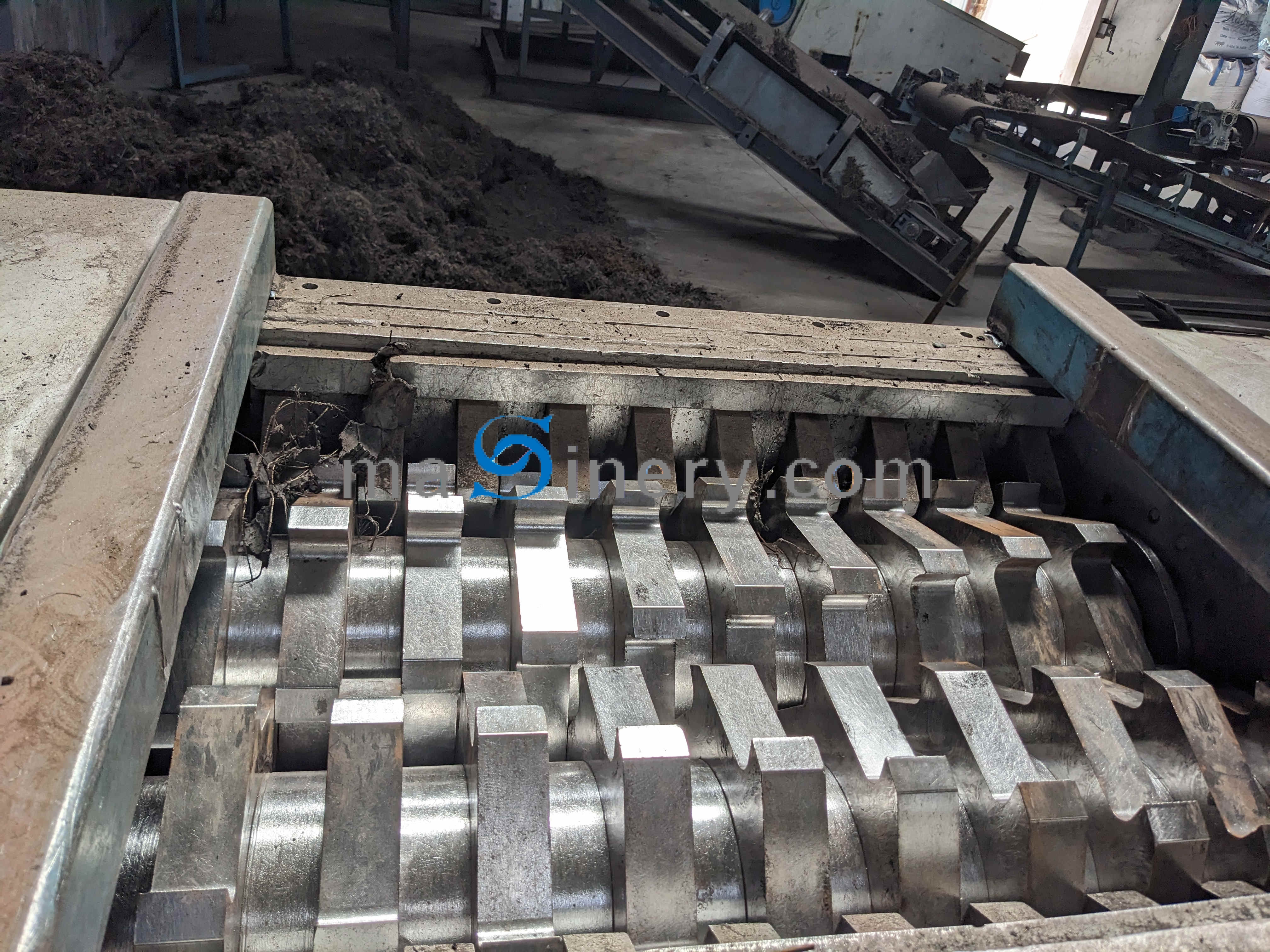

    4) Tyre shredder double shaft:

    Purchase: Feb 2023.

    Usage: 40 ton

    Output: 1500 kg/hr

    Motor: 2 x 60 HP (120 HP total)

    In feed material: truck bus radial whole tyre (without bead wire) or 3 Piece cutting (without bead wire), whole passenger car tyres can be used without removing bead wire. Output size: 5 inch x 1.5 inch pieces

    5) Bead wire remover:

    2 min (max) to process 1 side wall (depends on the operator),

    25 HP motor.

    6) Tyre side wall cutter:

    3 HP motor, 3-4 min to process 1 tyre.

    7) Tyre Strip cutter:

    5 HP motor, 500 kg/hr output.

    8) All required conveyors (including magnet) : motors total 23 HP.

2 electrical panel included: 1 x HT panel with capacitor bank, 1 x machines control panel.
