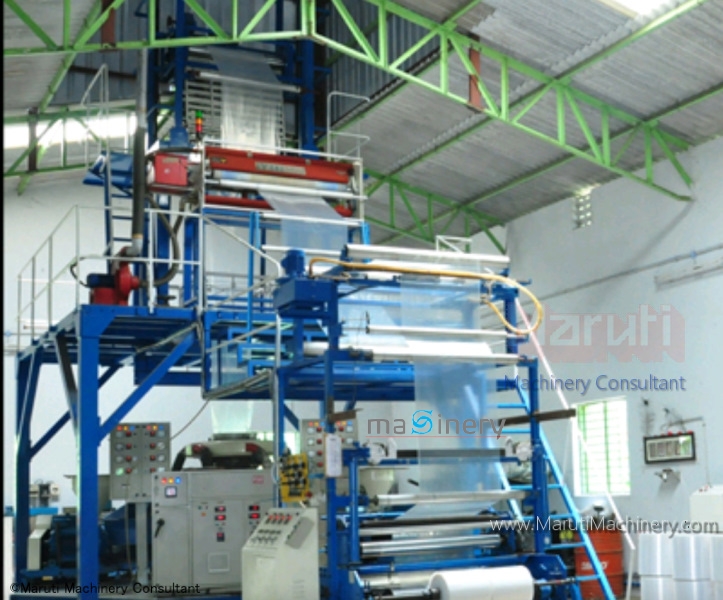

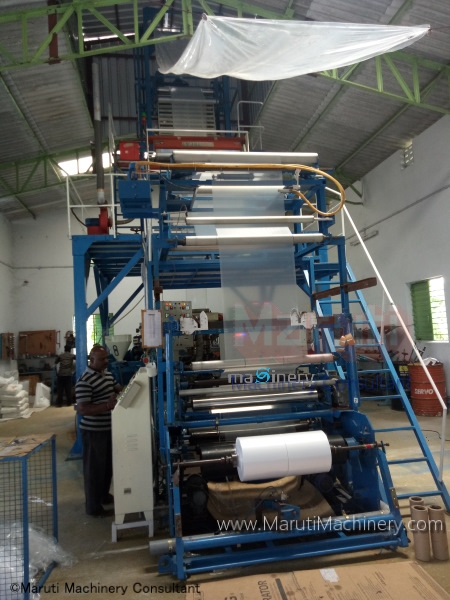

Three Layer Blown Film Line For Sale

Year 2005

Make Windsor

Production 80 kgs/hr 70Microns

Max Lay Flat Width mm 1000mm

Total Connected Power Load –85kw-95kw

Three Layer Extruder Inner –Outer - Middle (each)

Screw Diameter – 3 X 65mm

L/D Ratio – 50:1

Nos of Heating Zones – 3+1Zone (3 Barell and Die-1)

Heating Load - 25 kw

Main Drive Motor KW – 3X30 HP

Total Power Load at Extruder KW - 65kw

Die

Size mm – 280mm

Type – LDPE, LLDPE, HDPE

Take Off Unit

Nip Roller Width mm – 1200mm

Drive Load – 1HP

Line Speed meters/min -20meters/min

Tower Height ft. – 27 Ft

Winder Unit

Size mm- 1000mm

Type – Surface Winding

Nos of Winding Station – Two Station

Each Station Drive KW – 1.0kw

Operating Control Panel

AC / VFD

Corona Treatment Unit

Make: Electrotech

Power : 2.5kw

Roll Size: 1200X60mm

Pneumatically Open and Close

Web Aligner Hydraulic 1200mm

Water Chilling Unit Italian Make Including Radiator

Bubble Guide

Necessary Power Panel Board with Generator Change over

Air Compressor - LG Make
